Gerni MH 4M 120/690 Single Phase Electrical Hot Water Pressure Washer See 4M 100/720

SKU 107146619

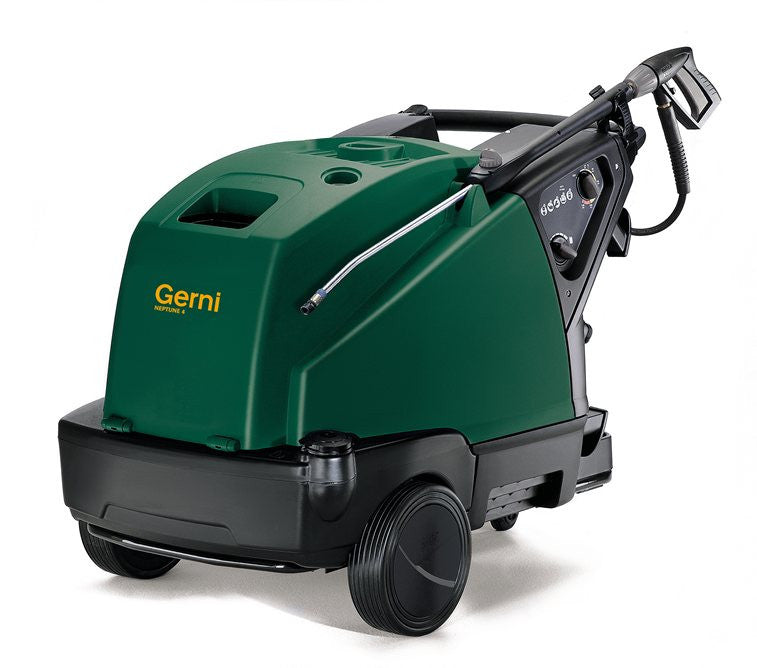

GERNI MH 4M 120/690 Formerly NEPTUNE 4-28FA Single Phase Mobile Hot Water Pressure Washer

See The New Gerni MH 4M 100/720

The Gerni MH 4M 120/690 is a convenient single phase hot water pressure washer designed to be used for around FOUR HOURS PER DAY with high performance, very easy to use, low noise and high cleaning efficiency. Partslist HERE and Factsheet HERE

QuickService concept give low running and maintenance costs, robustness, durability and high cleaning efficiency.

Heating costs are reduced with the award winning EcoPower boiler ( > 92% efficiency). Sound level is reduced thanks to the 1450 rpm motor.

Features:

*Single Phase Electrical Power * 1,740 PSI Max Water Pressure

* Fully ceramic 3 piston pump. With brass cylinder head.

* Easy to use control panel: all controls in one place.

* Ergo accessory system for additional user comfort.

Specifications:

* Cable Length; 5 meters * Power; 3.4 kW * Current; 15 Amps

* Supply Voltage: 230V Single Phase * Supply Frequency; 50 Hz

* Water Flow: QMAX  11.5 Lit/Min  QIEC 11 Lit/Min.

* Water Temperature (Water/Steam); 90/150C   * Max Input Water Temp: 40C

* Pump: 1450RPM 140 Bar/ 1,740PSI  * Cleaning Impact: 5kg/force

* Fuel: Diesel * Fuel Consumption; 2.7 kg/Hr.* Fuel Tank Capacity; 15 lit

* Removable Detergent Tank Capacity; 10 lit

* High Pressure Hose; 10 Meters DN6 single wire hose  * Nozzle Size; 0450

* Mass; 120 kg * Dimensions; 105cm Long x 69cm Wide x 76cm High

* Standard Accessories; Ergo 2000 gun, Tornado nozzle light blue .0450 and Universal Plus lance.

OPERATING INSTRUCTIONS

  1. Don't use turbo lance above 80 degrees (Opposite the off position on the main switch).
  1. Don't use a surface cleaner above 60 degrees
  1. Check the fuel level before use.
  1. Check the detergent container is full, and the dial turned off.
  1. Pre-select the desired temperature.
  1. If the steam is to be used, set the temperature to maximum and back off the steam dial which is found next to the pressure guage two turns anti-clockwise.
  1. Then switch on the unit.

IMPORTANT

WHEN HOT WATER / STEAM HAS BEEN USED AND UNIT IS NOT BEING USED FOR AT LEAST 10 MINUTES, TURN THE TEMPERATURE DIALS DOWN AND FLUSH UNIT THROUGH WITH COLD WATER UNTIL THE LANCE IS COLD.

Hot water units should only be used for a maximum of 2 hour at a time before resting for at least one hour, with power and water supplies turned off.
