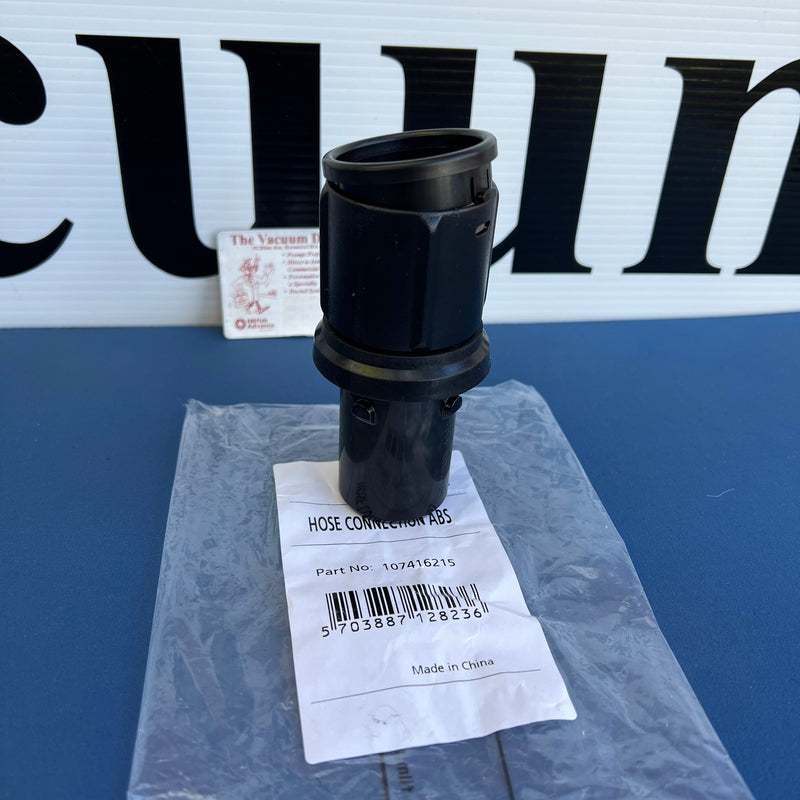

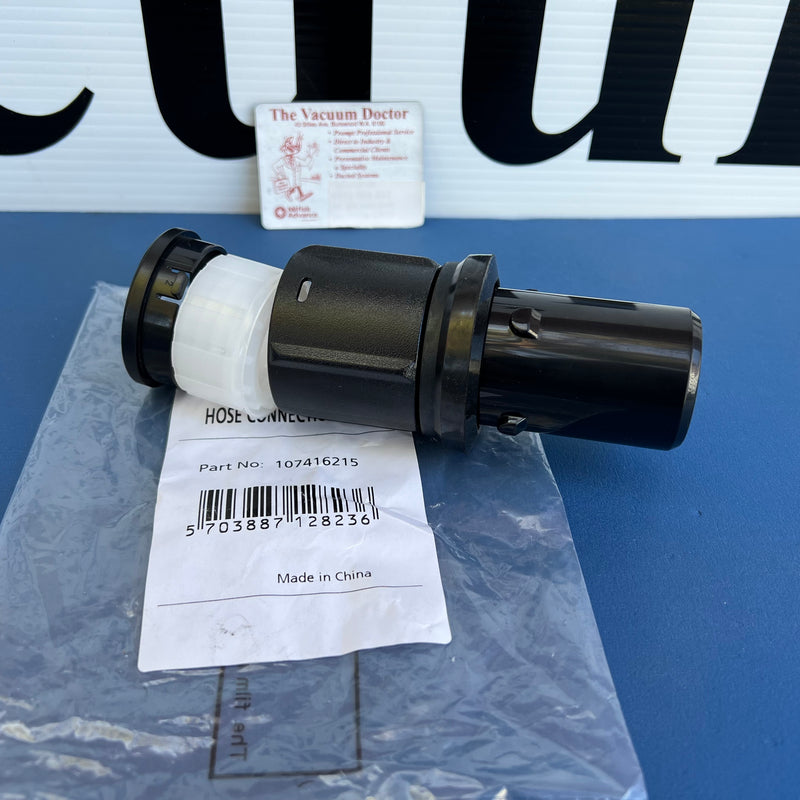

Nilfisk VP300 HEPA Commercial Vacuum Cleaner Container End Hose Cuff 32mm

Complete male bayonet hose cuff for the container end of the 32mm non-tapered vacuum hose of the Nilfisk VP300 HEPA and the Nilfisk VP400 HEPA Vacuum Cleaner as well as the Nilfisk VP300 Eco

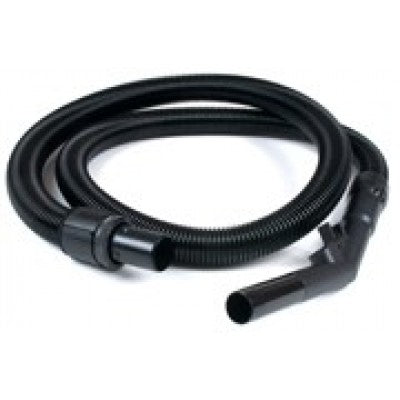

Before you order PLEASE CHECK which hose you have, tapered or non-tapered the 3rd photo of the hose is a close resemblance to the 32mm straight hose. There have been 4 different hoses supplied with this machine over it's lifetime.

It will also suit the following machines WHEN FITTED WITH THE straight 32mm Nilfisk hose SKU 147-0765-500 such as the Nilfisk GD1005 and the Nilfisk GD1010 and the Nilfisk Family 5 litre barrel vacuum cleaner and the Nilfisk Business 10 litre commercial vacuum cleaner and the Nilfisk HDS2000 commercial vacuum cleaner and the Nilfisk GD910 Commercial Vacuum Cleaner and the Nilfisk GD911 Battery Powered Barrel Vacuum Cleaner and the new Nilfisk VP600 H13 Commercial Vacuum Cleaner

To fit it, depress the two dimples on the click ring, and remove the click ring.

Thread the click ring, large diameter end first, down the hose.

Take the round hull in your dominant hand, then screw that anticlockwise onto the hose.

Bring up the click ring to the hull.

Put the hull into the cuff body, then push the click ring into the cuff body behind the hull, and push the dimples so they locate in the two holes on the cuff.

Check the hose and hull rotate freely in the cuff.

Then offer the hose and cuff with rubber seal into the container and twist it clockwise to lock it into the body.

FYI The cuff has to be removed from the container to remove the dustbag.
